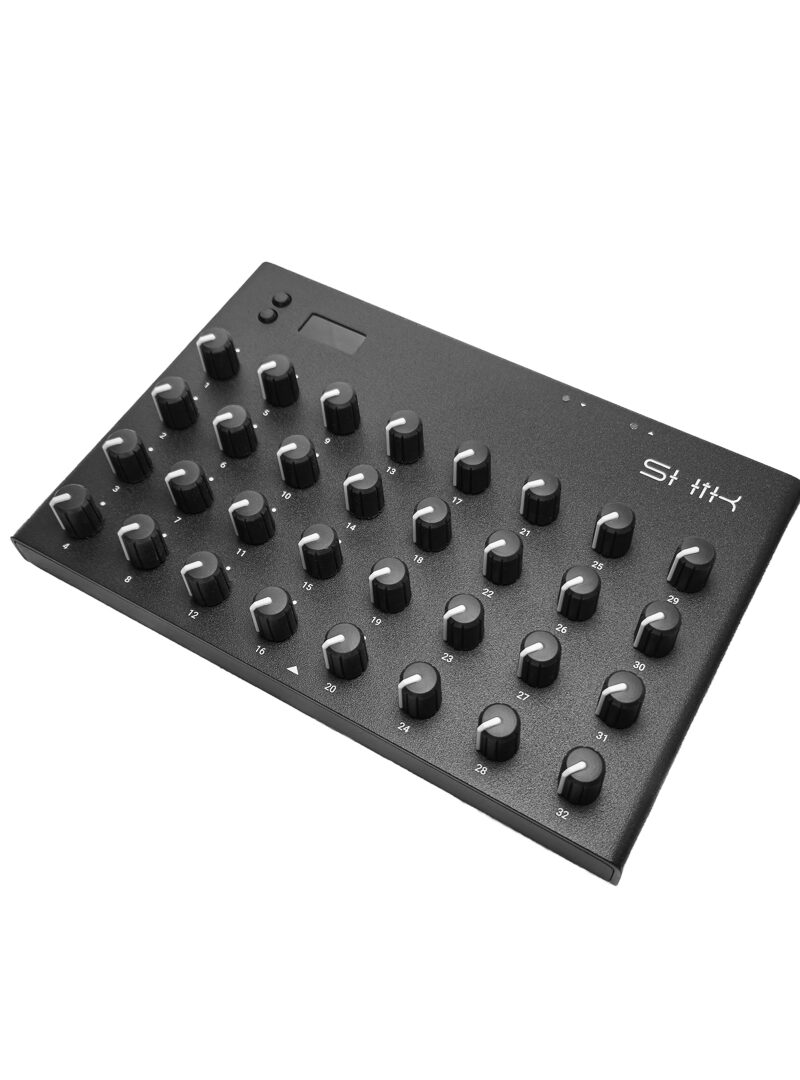

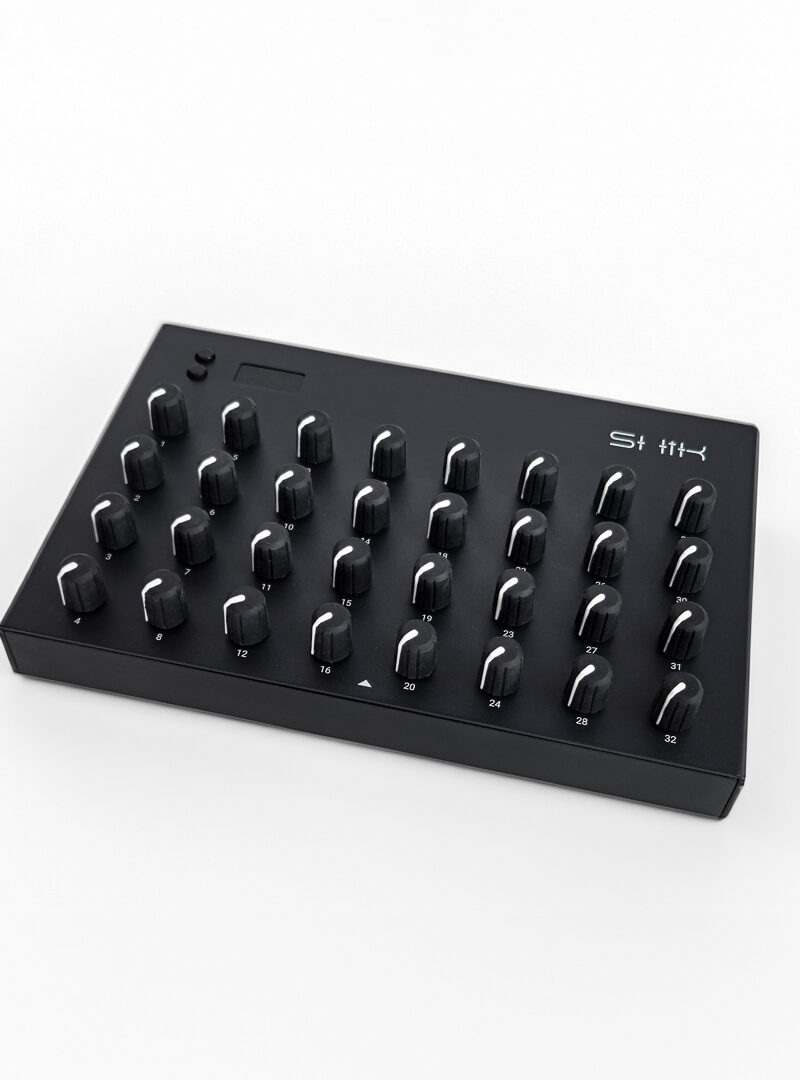

N32B Midi Controller
N32B Midi Controller
N32B Midi Controller

N32B DIY KIT | Natural Walnut (Discontinued)

N32B DIY kit of essential parts plus:

  • Natural walnut case
  • Black aluminum top panel
  • Black plastic knobs

We offer a pre-assembled option as well.

SKUn32b_kit_walnut_case Categories, Tags, ,
Close
Additional information
Weight 0.557 kg
Dimensions 21.5 × 14.5 × 5 cm

N32B DIY kit of essential parts with a black aluminum top panel and walnut enclosure

The N32B is small yet powerful DIY midi controller kit you can easily assemble yourself.

32 knobs, 16 channels, 5 programmable pre-sets, Plug & Play device, compatible with Mac and Windows.




N32B Midi Controller
N32B Midi Controller

Specs

  • MIDI I/O: In/Out/USB
  • Midi Messages Control change, NRPN, Accepts program change messages
  • Resolution High resolution - up to 1023 steps
  • Channels 16 Global channels. Supports custom channel assignment for each knob
  • Presets Save/Recall 5 Presets
  • Analog Inputs 1 x TRS 3.5mm (1/8″)
  • Analog Outputs 1 x TRS 3.5mm (1/8″)
  • USB 1 x Micro USB
  • Software N32B Editor
  • Compatibility Mac, Windows



Inside the box

  • Board 1 x N32B Custom Arduino breakout board
  • Top Panel 1 x Black sandblast aluminum panel with laser printed labels
  • Case 1 x Natural dark walnut case
  • Power 1 x Micro USB cable
  • Potentiometers 32 x 10k potentiometers
  • Arduino 1 x Arduino pro micro 5v
  • Multiplexers 2 x 16 channel multiplexer
  • Display 1 x 7-segment display with 2 digits
  • Display Driver 1 x MAX7219
  • Buttons 2 x Tactile buttons
  • Knob Caps 32 x Black knob caps
  • Button Caps 2 x Black button caps
  • Midi Jacks 2 x TRRS 3.5mm
  • Capacitors 1 x 100nF, 1 x 10uF
  • Resistors 4 x 220 ohm, 1 x 10k ohm, 1 x 4.7k ohm
  • Diode 1 x Diode
  • Screws 2 x M3 16mm, 6 x M3 6mm, 4 x M3 20mm
  • Spacers 6 x M3 7mm spacers
  • Legs 4 x Rubber legs



OSHWA Certificate

Certified by OSHWA
Open Source Hardware Association
