N32B v2 DIY KIT | Full Metal

N32B DIY kit of essential parts plus:

  • Full aluminum case
  • Black rubber knobs

We offer a pre-assembled option as well.

It takes 1-2 weeks for us to prepare your kit.

$239.00 (excl. VAT)

Out of stock

SKUn32b_kit_full_metal Categories, Tags, ,
Close
Additional information
Weight 1.5 kg
Dimensions 33 × 29 × 6 cm

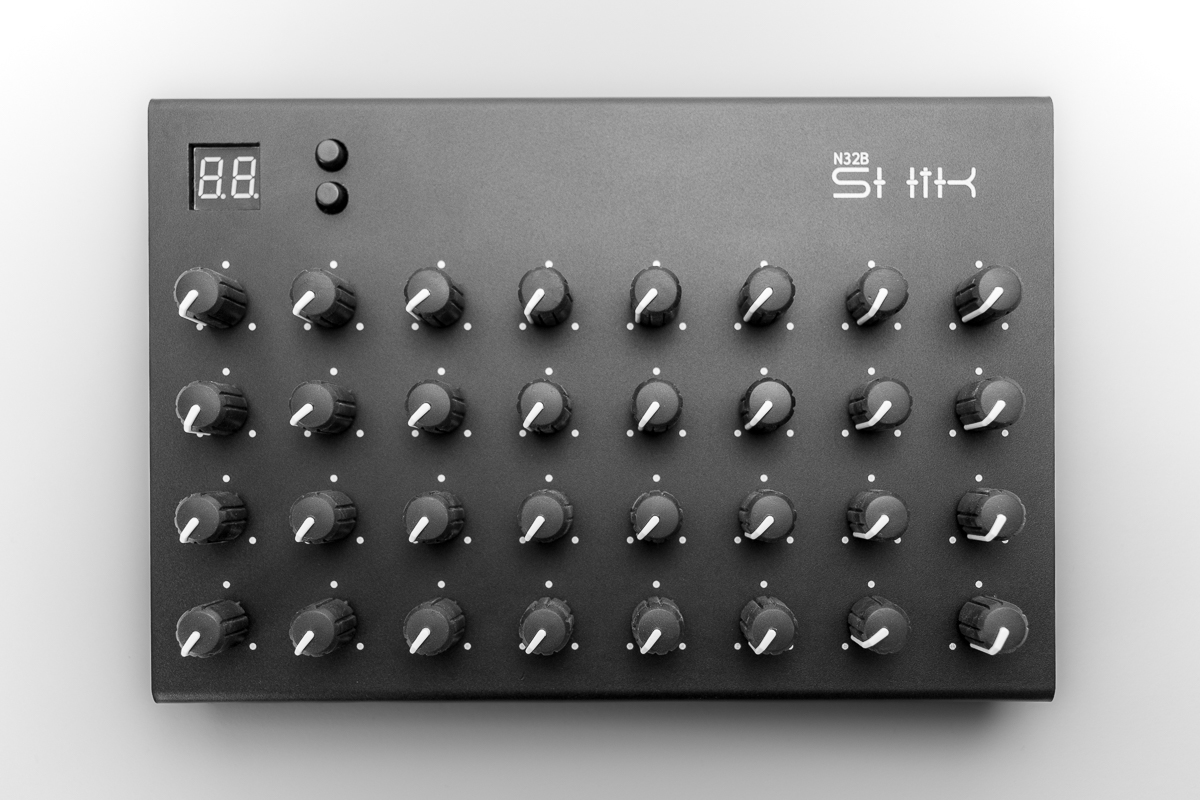

N32B DIY kit of essential parts with full black aluminum enclosure

The N32B is small yet powerful DIY midi controller kit you can easily assemble yourself.

32 knobs, 16 channels, 3 programmable pre-sets, Plug & Play device, compatible with Mac and Windows.

Specs

  • MIDI I/O: In/Out/USB
  • Midi Messages Control change, NRPN, Accepts program change messages
  • Resolution High resolution - up to 1023 steps
  • Channels 16 Global channels. Supports custom channel assignment for each knob
  • Presets Save/Recall 3 Presets
  • Analog Inputs 1 x TRS 3.5mm (1/8″)
  • Analog Outputs 1 x TRS 3.5mm (1/8″)
  • USB 1 x Micro USB
  • Software N32B Editor
  • Compatibility Mac, Windows

Inside the box

  • Board 1 x N32B Custom Arduino breakout board
  • Top Panel 1 x Black sandblast aluminum panel with laser printed labels
  • Case 1 x Full black aluminum case
  • Power 1 x Micro USB cable
  • Connectors 1 x TRS to MIDI DIN5 Adapter
  • Potentiometers 32 x 10k potentiometers
  • Arduino 1 x Arduino pro micro 5v
  • Multiplexers 2 x 16 channel multiplexer
  • Display 1 x 7-segment display with 2 digits
  • Display Driver 1 x MAX7219
  • Buttons 2 x Tactile buttons
  • Knob Caps 32 x Rubber knob caps for easy grip
  • Button Caps 2 x Black button caps
  • Midi Jacks 2 x TRRS 3.5mm
  • Capacitors 1 x 100nF, 1 x 10uF
  • Resistors 4 x 220 ohm, 1 x 10k ohm, 1 x 4.7k ohm
  • Diode 1 x Diode
  • Screws 20 x M3 6mm
  • Legs 4 x Rubber legs

OSHWA Certificate

Certified by OSHWA
Open Source Hardware Association
